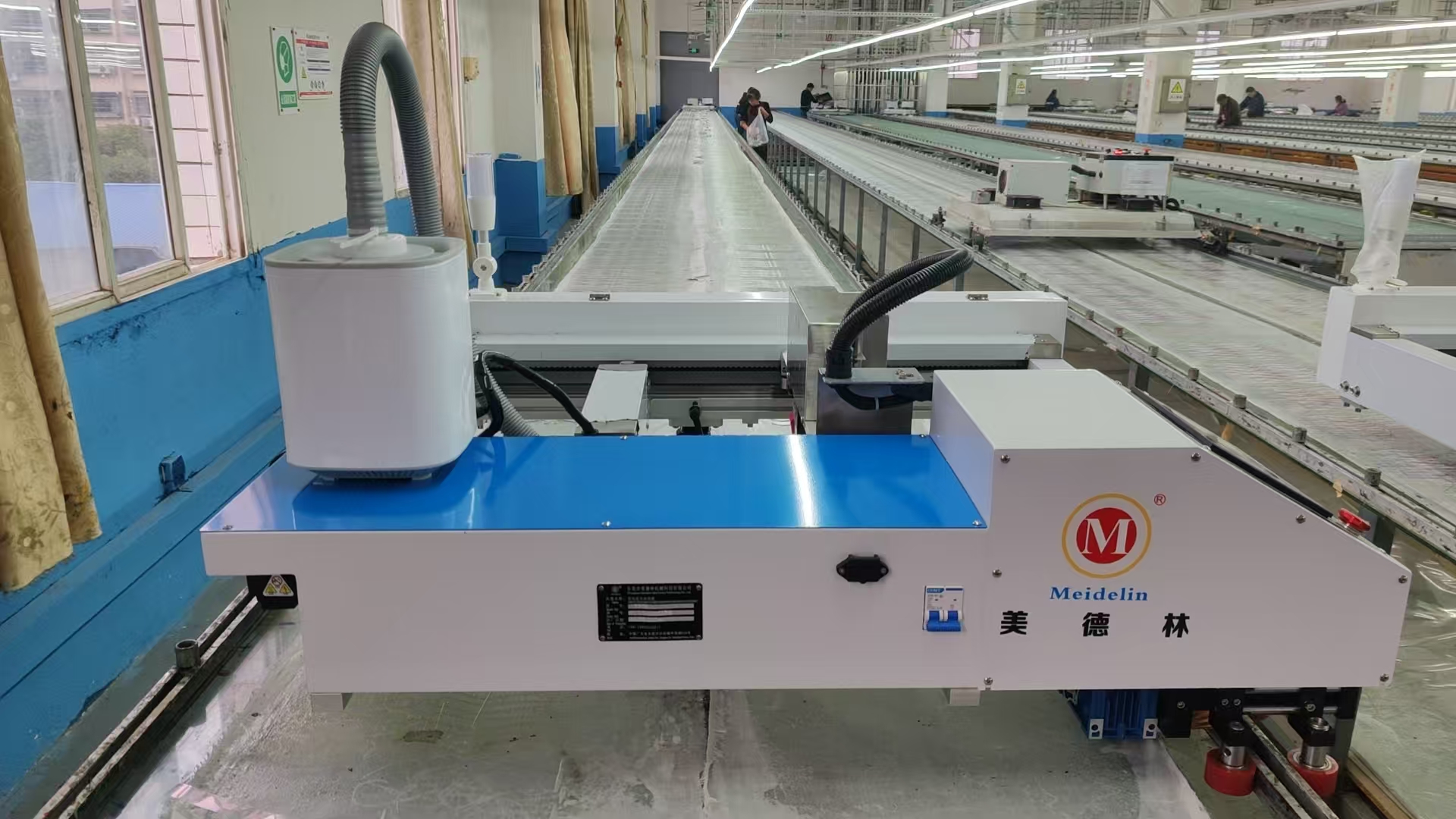

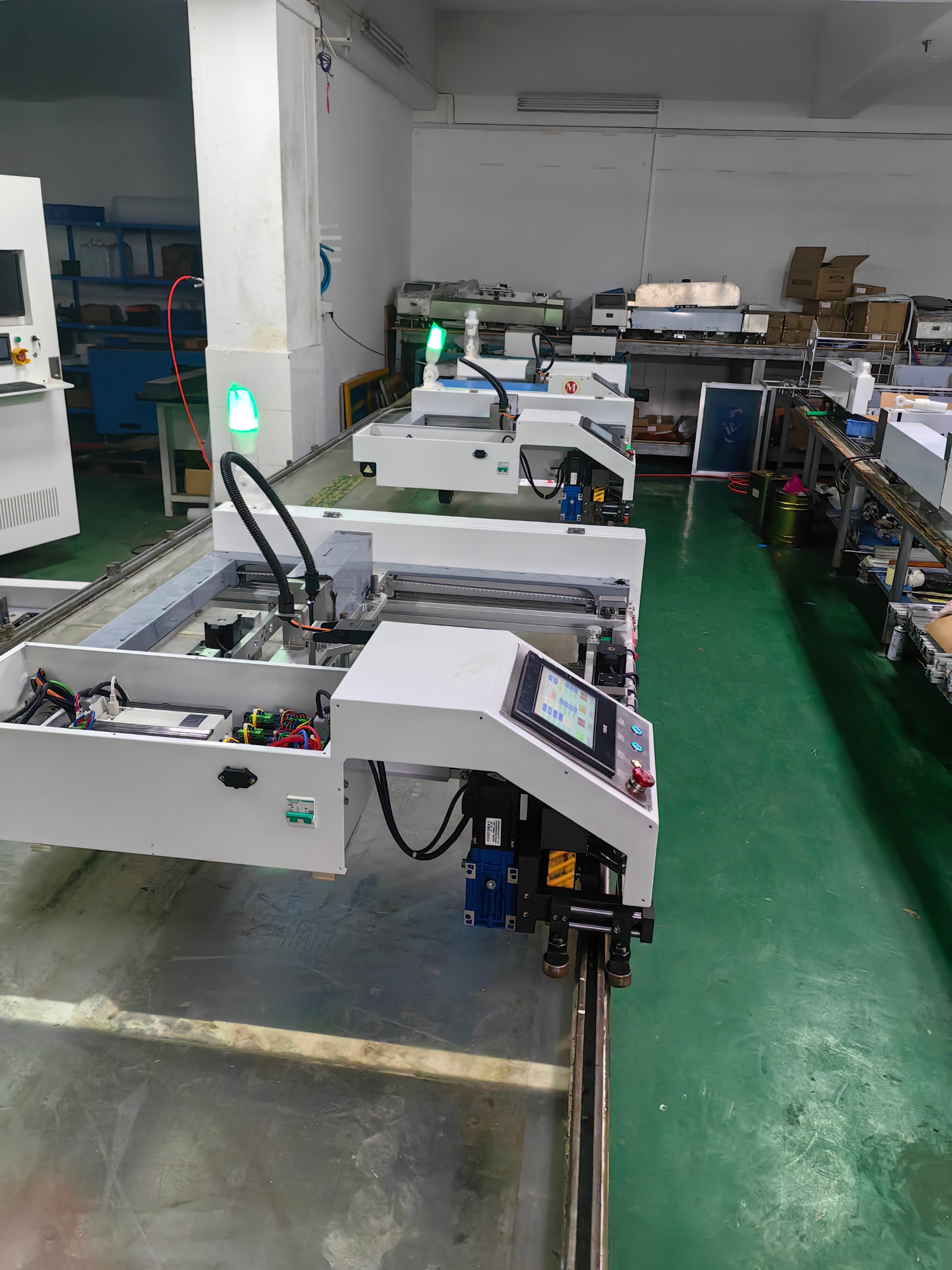

走台机
| 产品型号Type | M5876 | M5690 | M70120 | M80185 | M80215 |
| 台面宽度要求Table width requirement | 1.15M以上 | 1.25M以上 | 1.5M以上 | 1.9M以上 | 2.15M以上 |
| 机身尺寸Machine dimension（CM） | 105*100*45 | 105*120*45 | 134*165*45 | 134 165*45 | 148*215*45 |
| 印刷类型Form | 走台平板丝网印刷For table screen printing | ||||
| 适用范围Application | 平面承印物，材质不限 For all kind of Plane surface, unlimited material | ||||
| 印刷材料 Consumables | 水浆、胶浆、各类油墨、涂料不限Water slury, mucilage, printing ink,unlimited pigment | ||||
| 最大网框尺寸Max screen frame | 56cm*76cm | 56cm*90cm | 70cm*120cm | 80cm*185cm | 80cm*215cm |
| 最大印刷面积Max Printing area | 40cm*45cm | 40cm*60cm | 55cm*85cm | 65cm*150cm | 65cm*180cm |
| 适用码仔类型Applicable code type | 上靠式圆码仔Upper leaning circle code | ||||
| 工作方式Work way | 蓄电池供电(12小时)、全电动工作Electric,storage within 12 hours | 外接电源加电池辅助External power supply plus battery assist | |||
| 印刷效率Efficiency | 600-1200 times/H | 500-800 times/H | |||
| 重复、套印精度Precision | 士0.01mm | ||||
| 刮刀调节范围 Scrape adjustment range | 角度任意调整Any angle | ||||
| 刮印、行走速度 Speed | 0.3-0.6M/second | ||||
